What is Monel K500 Tube?

Monel K500 is a nickel-copper alloy that contains small amounts of aluminum and titanium. It is known for its excellent corrosion resistance, particularly in marine environments and acidic conditions. Monel K500 tubes are typically used in various industries such as marine engineering, chemical processing, oil and gas, and aerospace. Monel K500 Tube combines the excellent corrosion resistance of alloy 400 with increased strength and hardness. Alloy K500 Tube offers three times the yield strength of alloy 400. These enhanced properties are achieved through the addition of aluminum and titanium elements, along with age-hardening. During the age-hardening process, trace Ni3 (titanium, aluminum) particles precipitate into the matrix.

The addition of aluminum and titanium to the alloy enhances its strength and hardness, making it suitable for applications where high strength and resistance to corrosion are required. Monel K500 tubes are often used in tubing systems for carrying corrosive fluids or gases, heat exchangers, and other demanding environments where conventional materials might fail.

Monel K500 Tubes low magnetic permeability, high strength, and corrosion resistance similar to steel make it widely used, particularly in oil well equipment and electronic components. An important characteristic is that K500 Tube remains non-magnetic even at very low temperatures. Age-hardening results in initial volume contraction. During the age-hardening process, rods with a diameter of 2.5×10-4 inches undergo contraction. To achieve good performance, the typical age-hardening process involves holding at 982°C for 30 minutes and then water quenching. After holding at 593°C-607°C for 16 hours, slow cool in the furnace at a rate of 9.4°C to -3.8°C per hour until reaching 482°C. Afterward, cool from 482°C to room temperature, with intermediate steps possibly involving air cooling or quenching, without specific cooling rates.

Monel K500 Tube Chemical Composition:

Monel K500 Tube Physical Properties:

Monel K500 tubes offer a combination of corrosion resistance, strength, and durability, making them a popular choice for challenging applications in various industries.

Monel K500 Tube Material Characteristics:

Monel K500 is a nickel-copper alloy known for its excellent corrosion resistance, high strength, and good ductility. Enhanced by adding aluminum and titanium, it offers increased hardness and strength through age hardening. Monel K500 retains its properties even at sub-zero temperatures, making it suitable for marine applications, chemical processing, and oil and gas industries. Its resistance to sour-gas environments and low magnetic permeability add to its versatility in demanding conditions.

Monel K500 Tube Production Standards

Monel K500 seamless tubes are typically produced according to the following international standards:

1. ASTM B165: Standard Specification for Nickel-Copper Alloy (UNS N04400) Seamless Pipe and Tube.

2. ASTM B163: Standard Specification for Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes.

3. ASTM B829: Standard Specification for General Requirements for Nickel and Nickel Alloys Seamless Pipe and Tube.

4. ASME SB-165: ASME Boiler and Pressure Vessel Code Section II Material Specifications for Seamless Nickel-Copper Alloy (UNS N04400) Pipe and Tube.

5. AMS 4676: Aerospace Material Specification for Nickel-Copper-Aluminum Alloy, Corrosion and Heat-Resistant, Bars, Forgings, Tubing, and Wire, 63Ni - 30Cu - 2.7Al - 0.4Ti - 0.4Si, Solution Heat Treated, Precipitation Hardened.

Monel K500 Corresponding Grades

1. UNS N05500: The designation assigned to Monel K500 by the Unified Numbering System (UNS) in the United States.

2. Werkstoff Nr. 2.4375: The designation assigned to Monel K500 by the German Material Number system (Werkstoff Nummer).

3. EN NiCu30Al: The designation in the European Norm (EN) standard.

4. JIS NW5500: The designation in the Japanese Industrial Standards (JIS).

5. BS NA18: The designation in the British Standards (BS).

Monel K500 Tube Primary Applications:

Monel K500 tubes find applications across a range of industries where corrosion resistance, high strength, and durability are required. Some common applications include:

1. Marine Engineering: Monel K500 tubes are used in marine engineering for seawater applications due to their excellent resistance to corrosion, particularly in saltwater environments.

2. Chemical Processing: These tubes are utilized in chemical processing plants where they are exposed to corrosive chemicals and acids. Monel K500s resistance to a wide range of chemicals makes it suitable for such applications.

3. Oil and Gas Industry: Monel K500 tubes are employed in oil and gas extraction, refining, and transportation processes where they come into contact with corrosive fluids and gases. They are used in tubing systems, heat exchangers, and downhole equipment.

4. Aerospace: Monel K500 tubes are used in aerospace applications, including aircraft hydraulic systems and fuel lines, where they need to withstand high pressures and exposure to aviation fuels and hydraulic fluids.

5. Power Generation: Monel K500 tubes are used in power generation plants, including nuclear, fossil fuel, and renewable energy facilities, for tubing systems, heat exchangers, and condensers.

6. Chemical Equipment: Monel K500 tubes find applications in various chemical equipment such as reactors, evaporators, and distillation columns due to their resistance to corrosion and high temperatures.

7. Seawater Desalination: Monel K500 tubes are used in desalination plants where they are exposed to seawater during the desalination process. Their corrosion resistance makes them suitable for use in this harsh environment.

8. Automotive Industry: Monel K500 tubes may be used in automotive applications where they are exposed to corrosive environments, such as in exhaust systems or cooling systems.

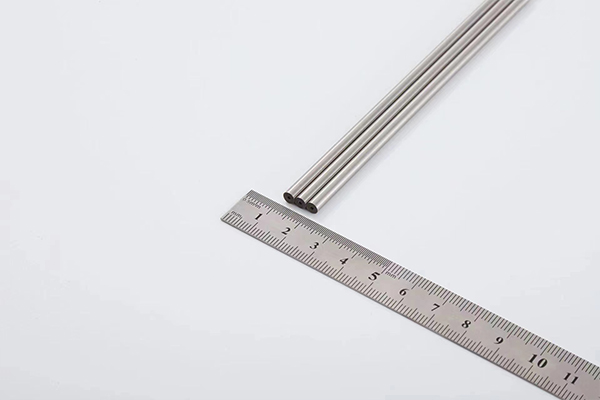

Monel K500 Tubing
